MBL(低窄轨型)传动座-Motor Bracket MBL (Low Narrow Type)

• 规格尺寸
  • MBL

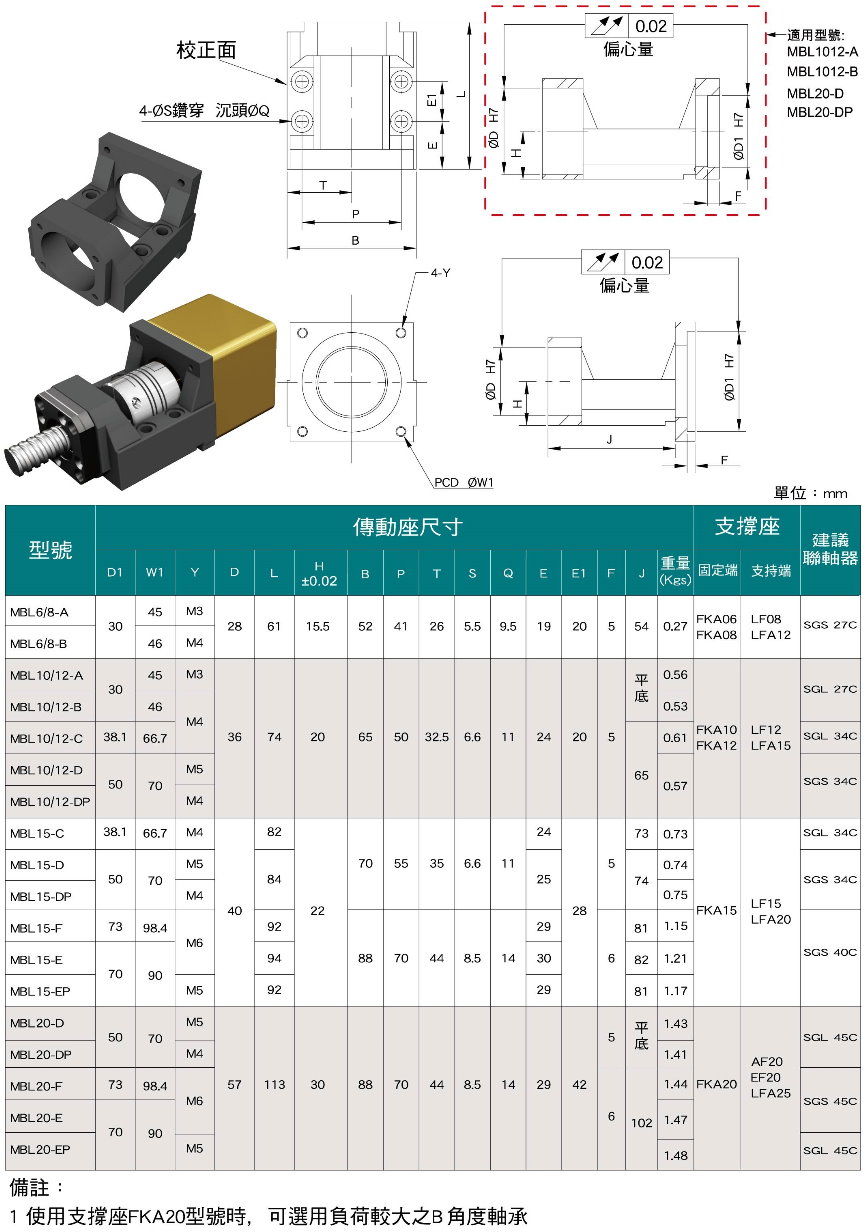

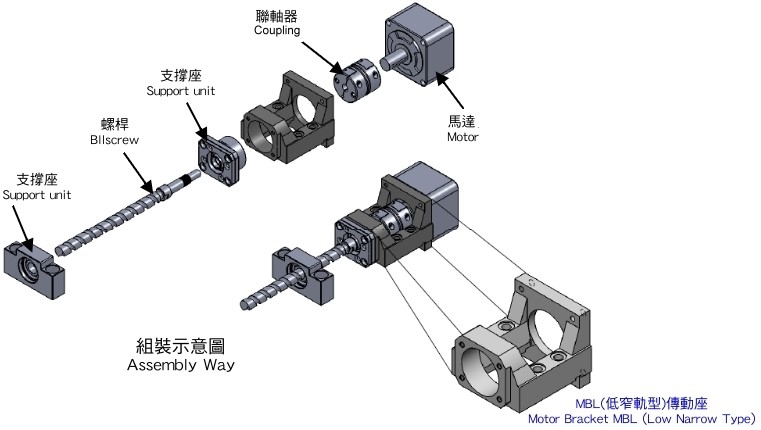

• 安装示意图(爆炸图)
• CAD下载
• 组合图

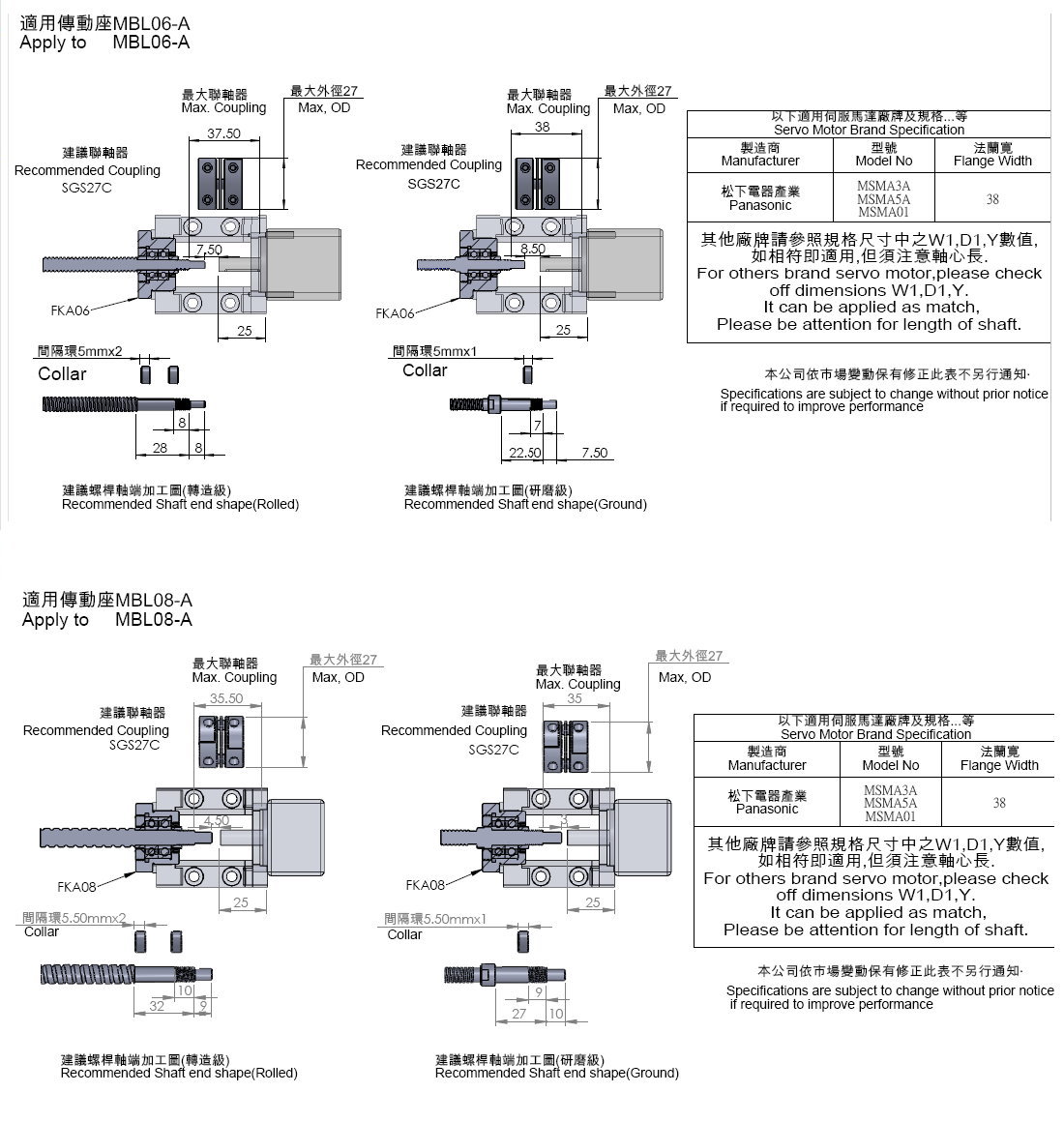

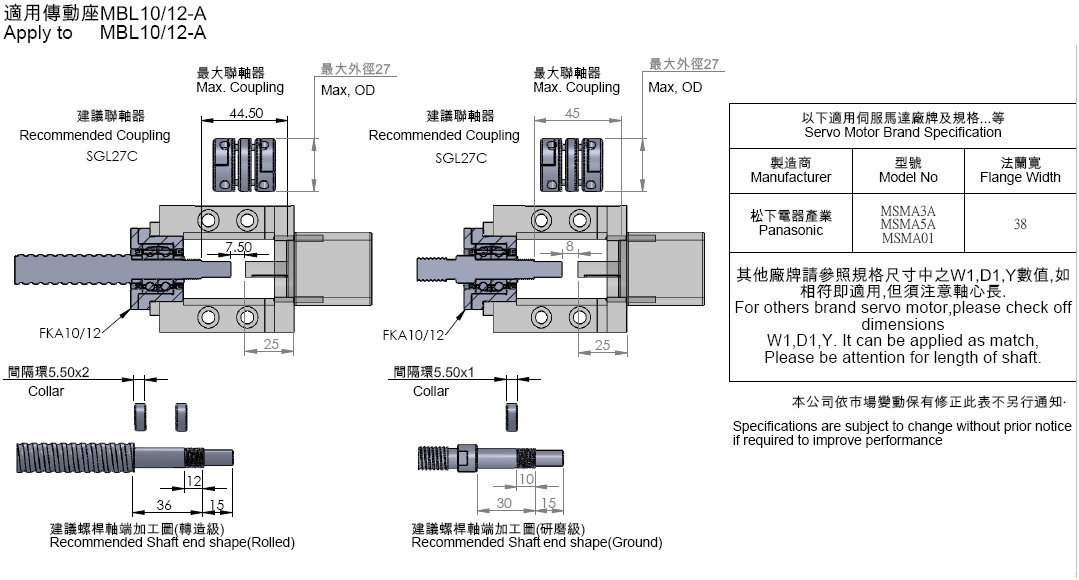

  • MBL6/8-A

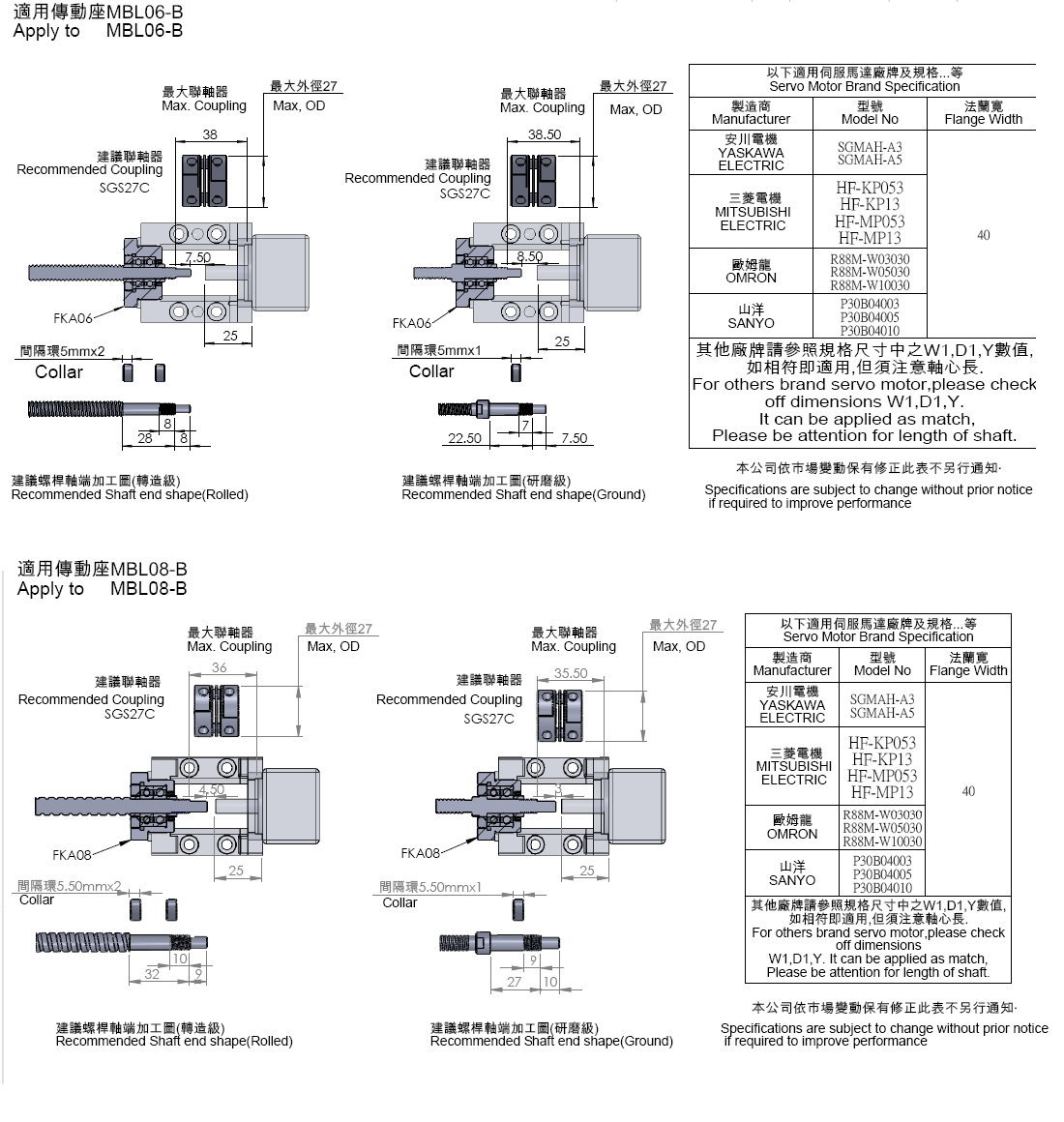

  • MBL6/8-B
  • MBL10/12-A

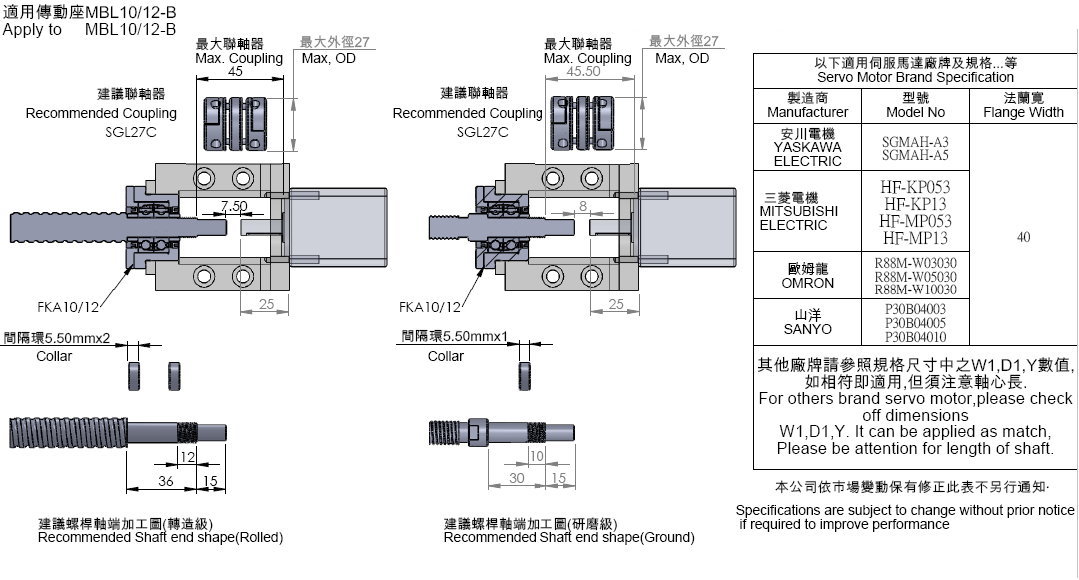

  • MBL10/12-B

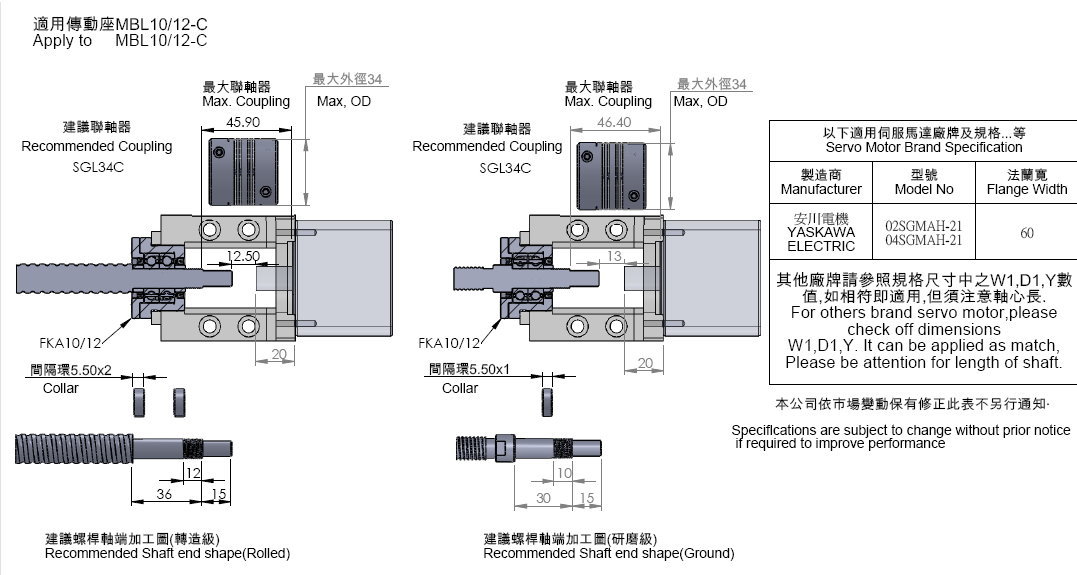

  • MBL10/12-C
  • MBL10/12-D

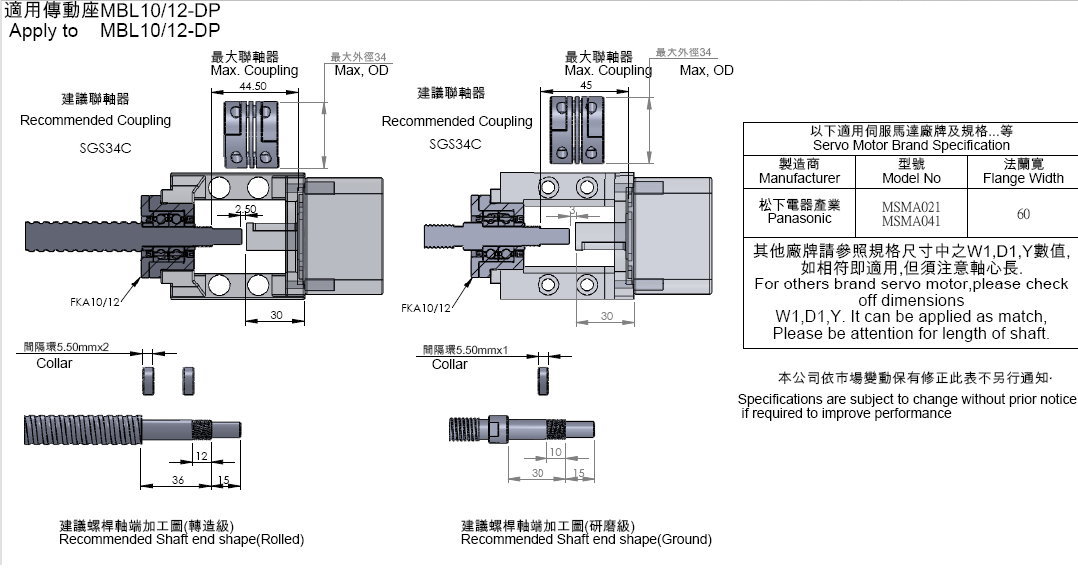

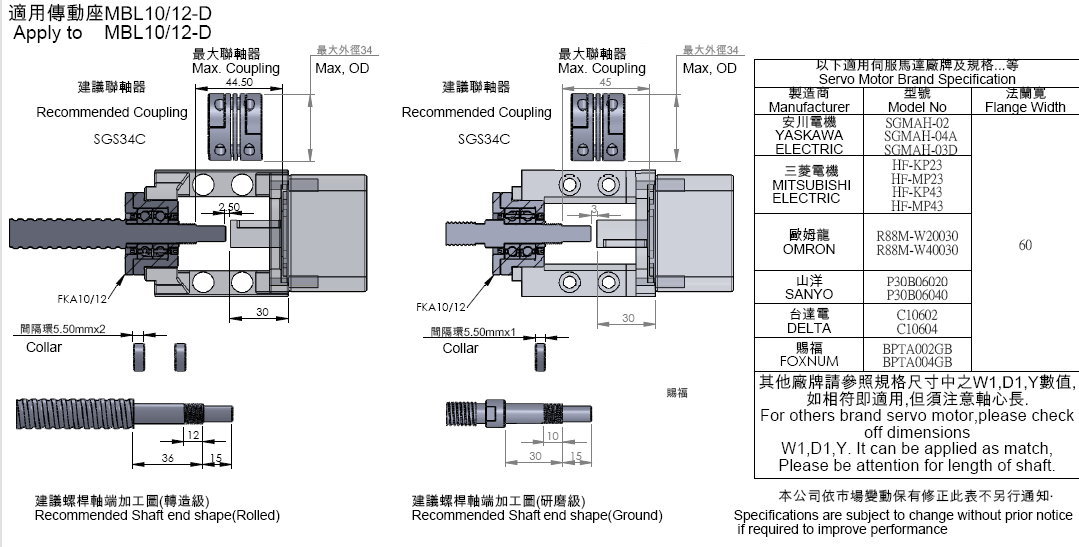

  • MBL10/12-DP

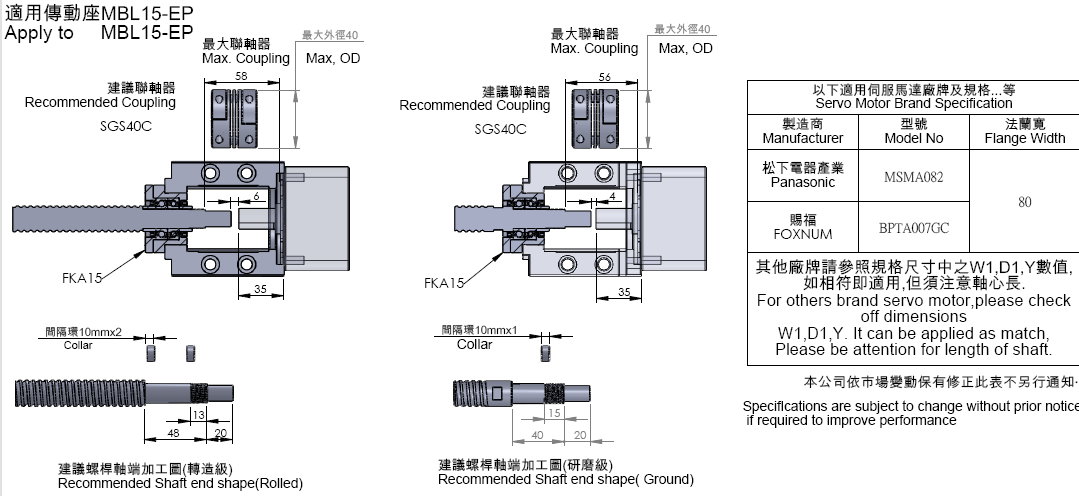

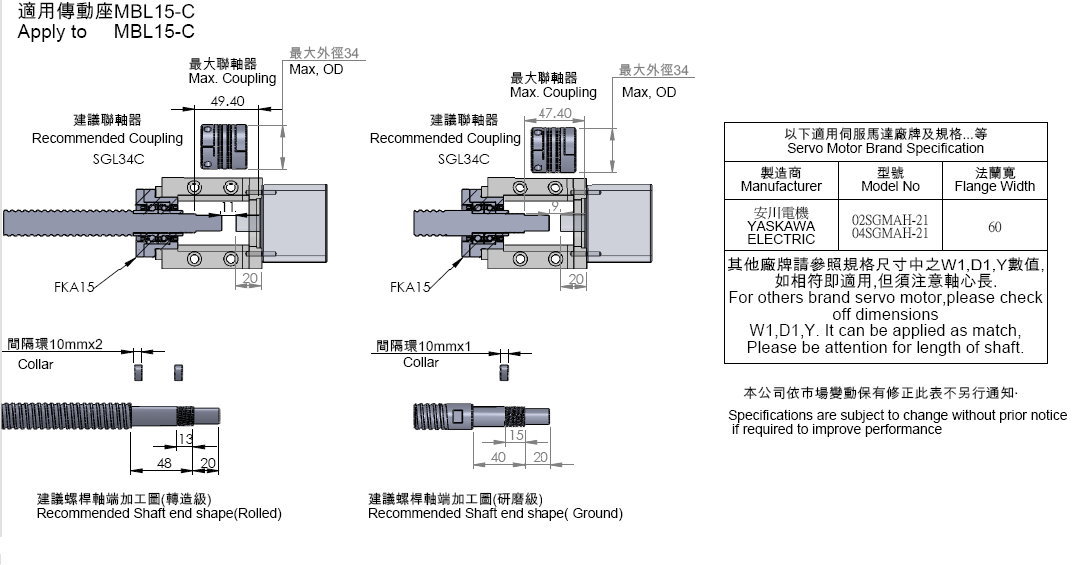

  • MBL15-C

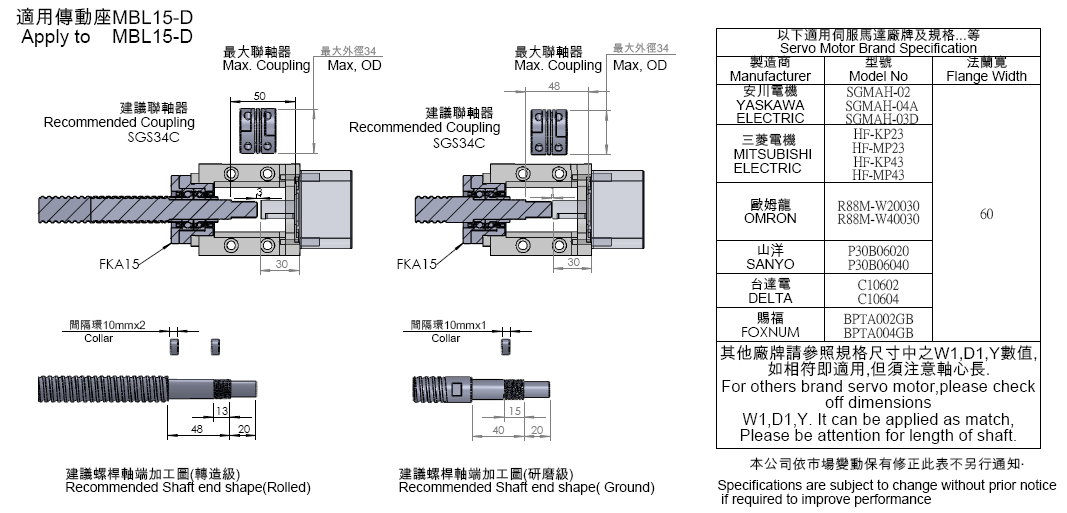

  • MBL15-D

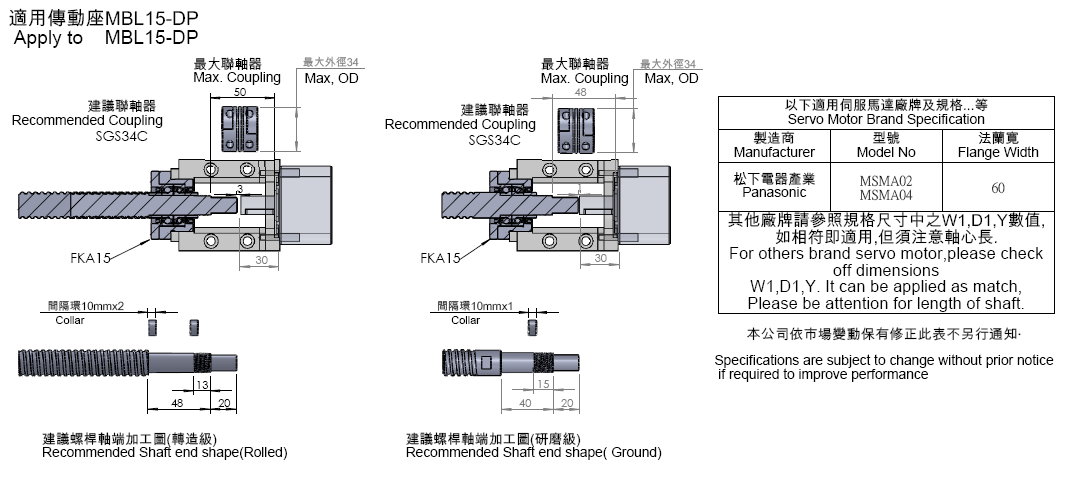

  • MBL15-DP
  • MBL15-E
  • MBL15-EP

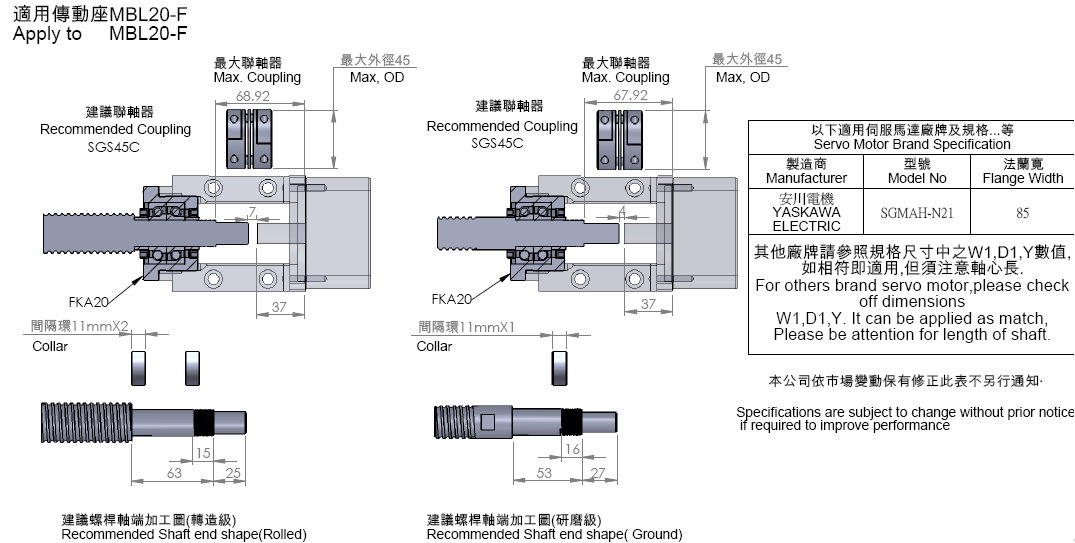

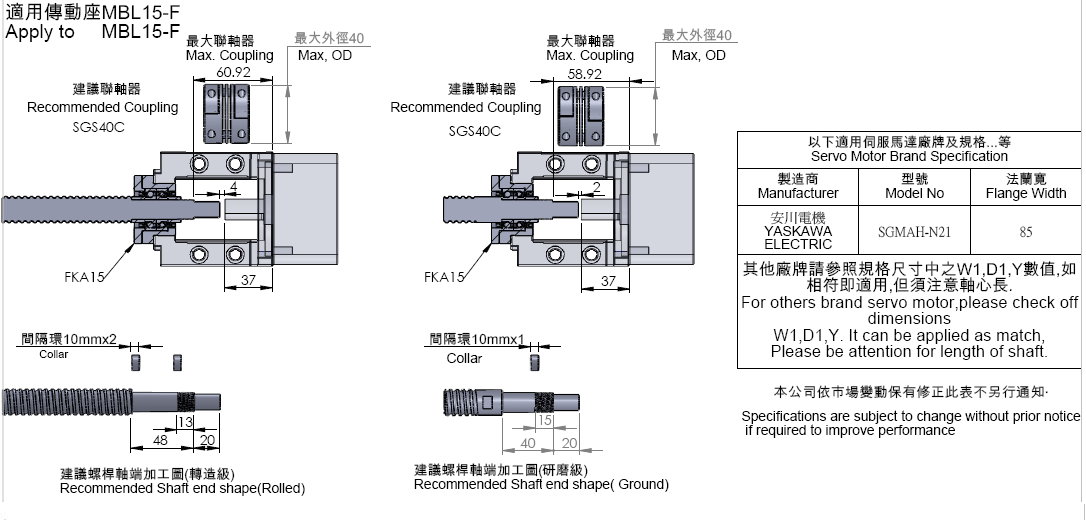

  • MBL15-F

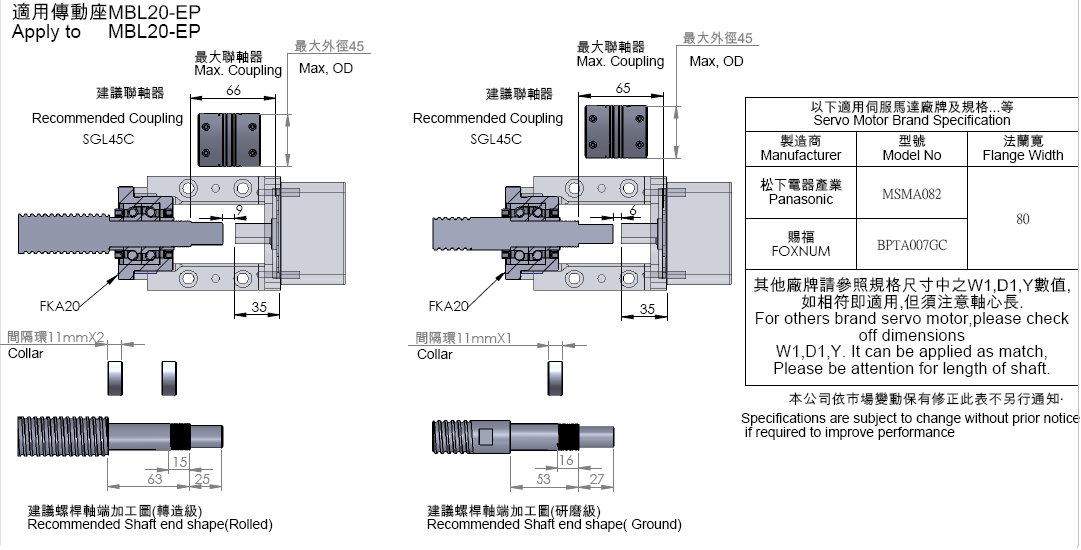

  • MBL20-F

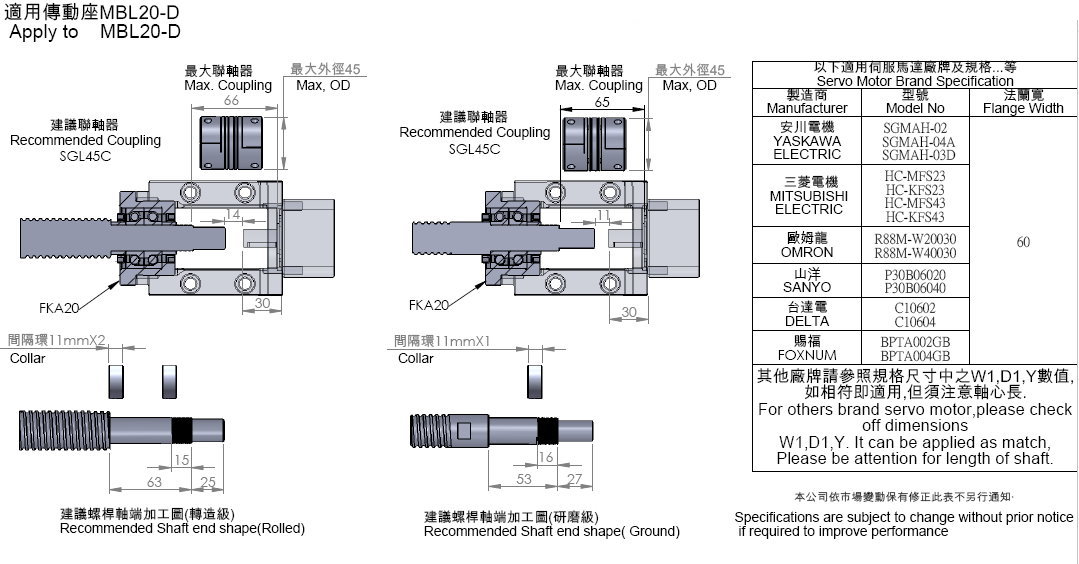

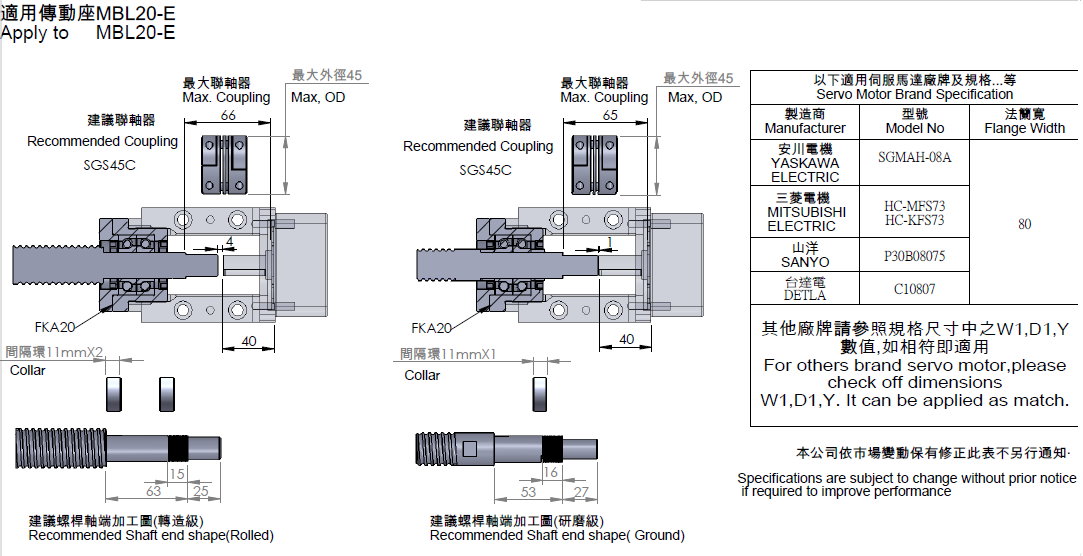

  • MBL20-D

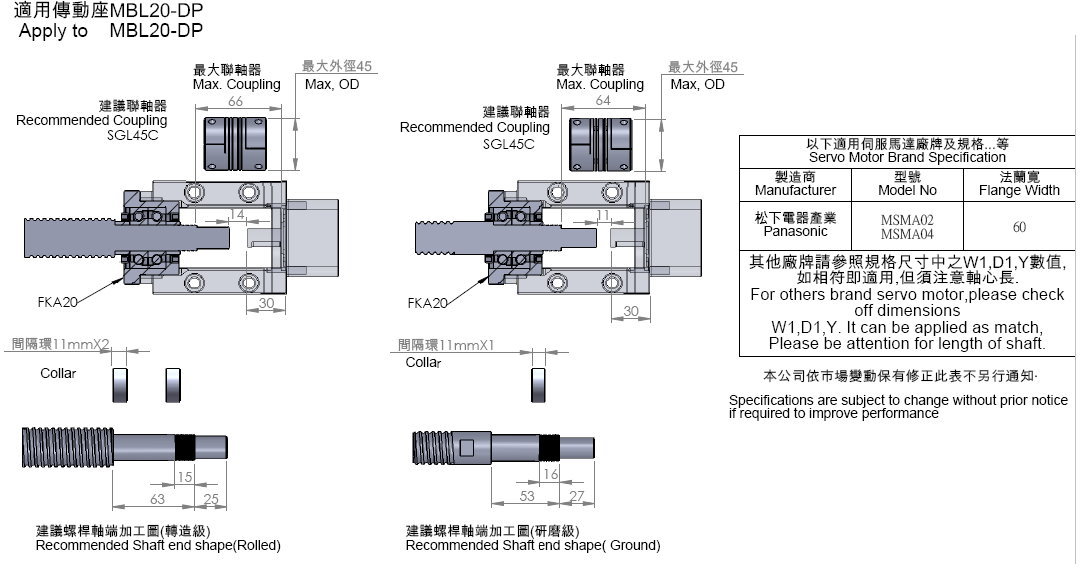

  • MBL20-DP
  • MBL20-E
  • MBL20-EP

型号	A	B	C	D	DP	E	EP	F
MBL6/8	2D   3D	2D   3D	-	-	-	-	-	-
MBL10/12	2D   3D	2D   3D	2D   3D	2D   3D	2D   3D	-	-	-
MBL15	-	-	2D   3D	2D   3D	2D   3D	2D   3D	2D   3D	2D   3D
MBL20	-	-	-	2D   3D	2D   3D	2D   3D	2D   3D	2D   3D

型号	A	B	C	D	DP	EP	E	F
MBL6/8	SGS 27C		-	-	-	-	-	-
MBL10/12	SGL 27C		SGL 34C	SGS 34C		-	-	-
MBL15	-	-				SGS 40C
MBL20	-	-	-	SGL 45C			SGS 45C
